Shaping Machine
SBT-SM30-00
Heavy-duty shaping machine with horizontal and lifting moving worktable, cam feed mechanism, overload safety clutch, and brake parking system.
Designed for Single & Small-Batch Production
The SBT-SM30-00 shaping machine features a heavy-duty bed structure with excellent rigidity and long service life. The worktable is equipped with horizontal and lifting movement mechanisms, enabling planing of inclined surfaces in addition to standard horizontal operations, significantly expanding the machine's application range.
The feed system uses a cam mechanism with 10 selectable feed rates for convenient cutting adjustment. When cutting loads exceed normal limits, the tool automatically slips to protect the machine's core components from structural damage.
Bed guide rails, gear pairs, and main sliding guide surfaces are all force-lubricated by an oil pump. Combined with the clutch and brake parking mechanism, speed changes and stops can be made without cutting power — the ram inertia stroke after braking does not exceed 10 mm.

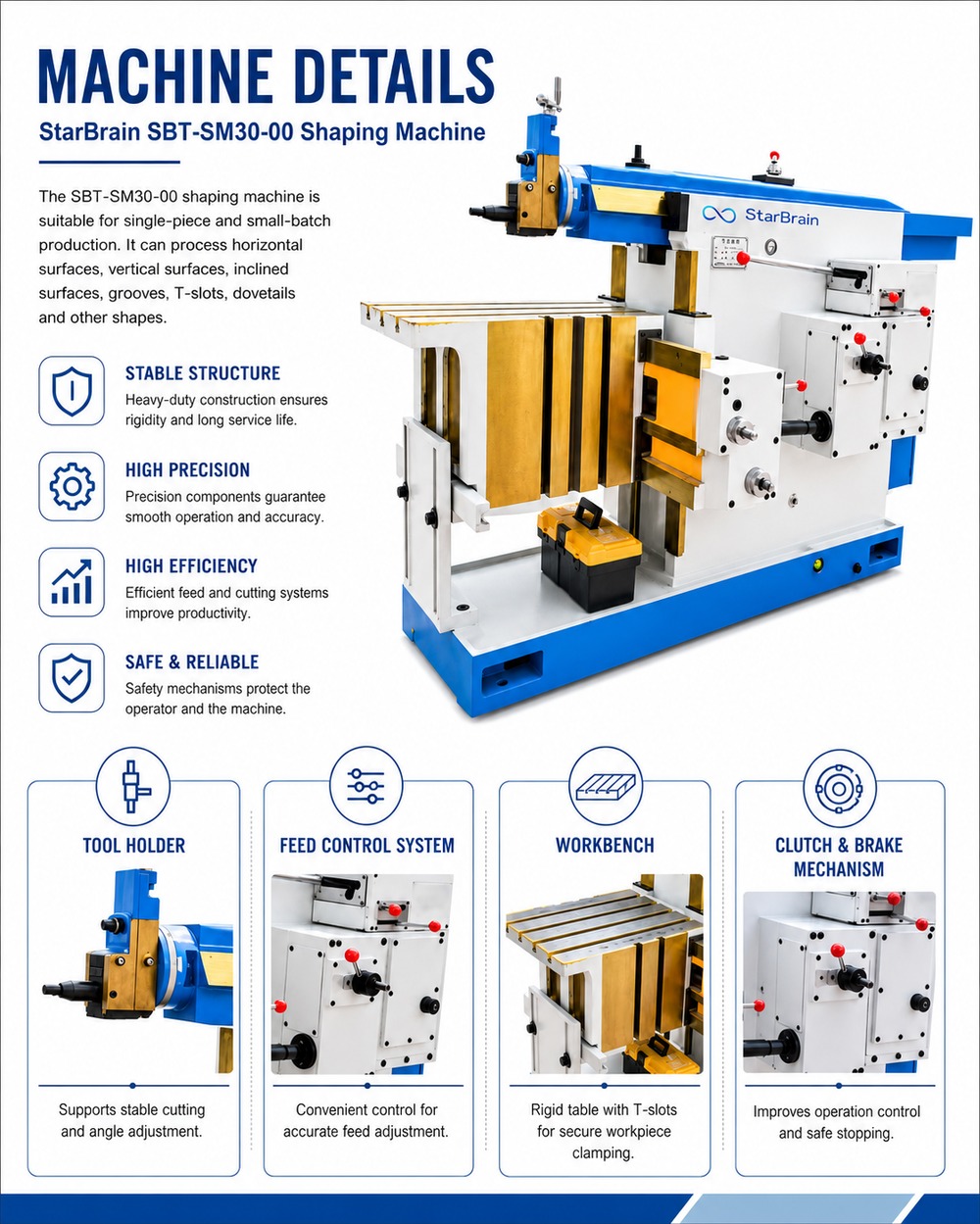

Core Advantages
Six structural innovations that together deliver precision, efficiency, and safety during the machining process.
Horizontal & Lifting Worktable
Horizontal and lifting bidirectional movement enables planing of inclined surfaces, greatly expanding the machine's application range.
Cam Feed Mechanism
The feed system uses a cam mechanism with 10 selectable feed rates, making cutting amount adjustment convenient and efficient.
Overload Safety Protection
The cutting tool automatically slips during overload, preventing structural damage to the machine caused by abnormal operation or external forces.
Automatic Lubrication System
Oil pump-driven lubrication continuously supplies the ram, bed guide rails, gear pairs, and main sliding guide surfaces.
Clutch & Brake Parking
Speed changes and stops require no power disconnection; the ram inertia stroke after braking is ≤ 10 mm for safer operation.
Heavy-Duty Bed Structure
The robust, rigid machine bed maintains precision and stability even under long-term, high-load continuous operation.
One Machine, Multiple Surface Types
With its flexible worktable movement and tool head rotation, the SBT-SM30-00 handles the following machining tasks:
- Horizontal surface planing
- Vertical surface planing
- Inclined surface planing
- Groove cutting
- Lubrication system maintenance
- Clutch & brake operation practice
Technical Specifications
All specifications are based on StarBrain factory standard configuration. Actual specifications may vary — refer to the product nameplate.
| Parameter | Value |
|---|---|
| Max planing length | 630 mm |
| Distance from ram bottom to workbench | 385 mm |
| Max lateral movement of workbench | 630 mm |
| Max vertical movement of workbench | 360 mm |
| Workbench dimensions (L × W) | 630 × 400 mm |
| Tool holder stroke | 120 mm |
| Ram strokes per minute | 14 / 20 / 28 / 40 / 56 / 80 |
| Knife holder rotation angle | ±60° |
| Main motor power | 3 kW |
| Overall dimensions (L × W × H) | 2342 × 1225 × 1480 mm |
| Net weight / Gross weight | 1750 / 1870 kg |

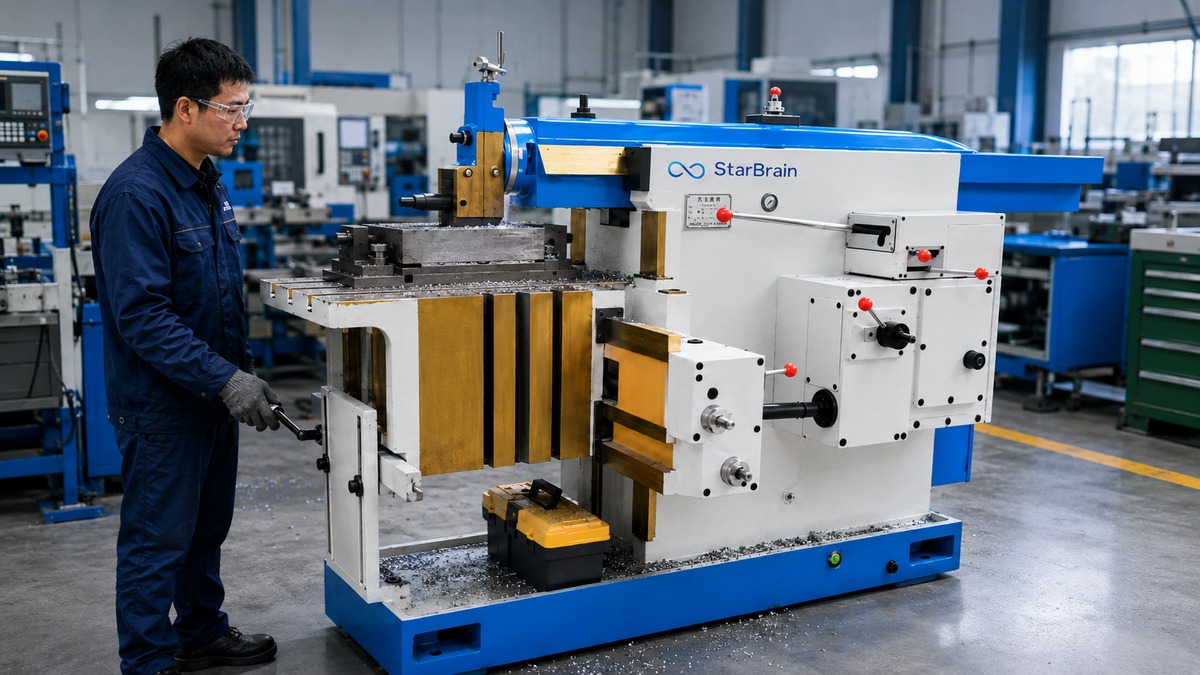

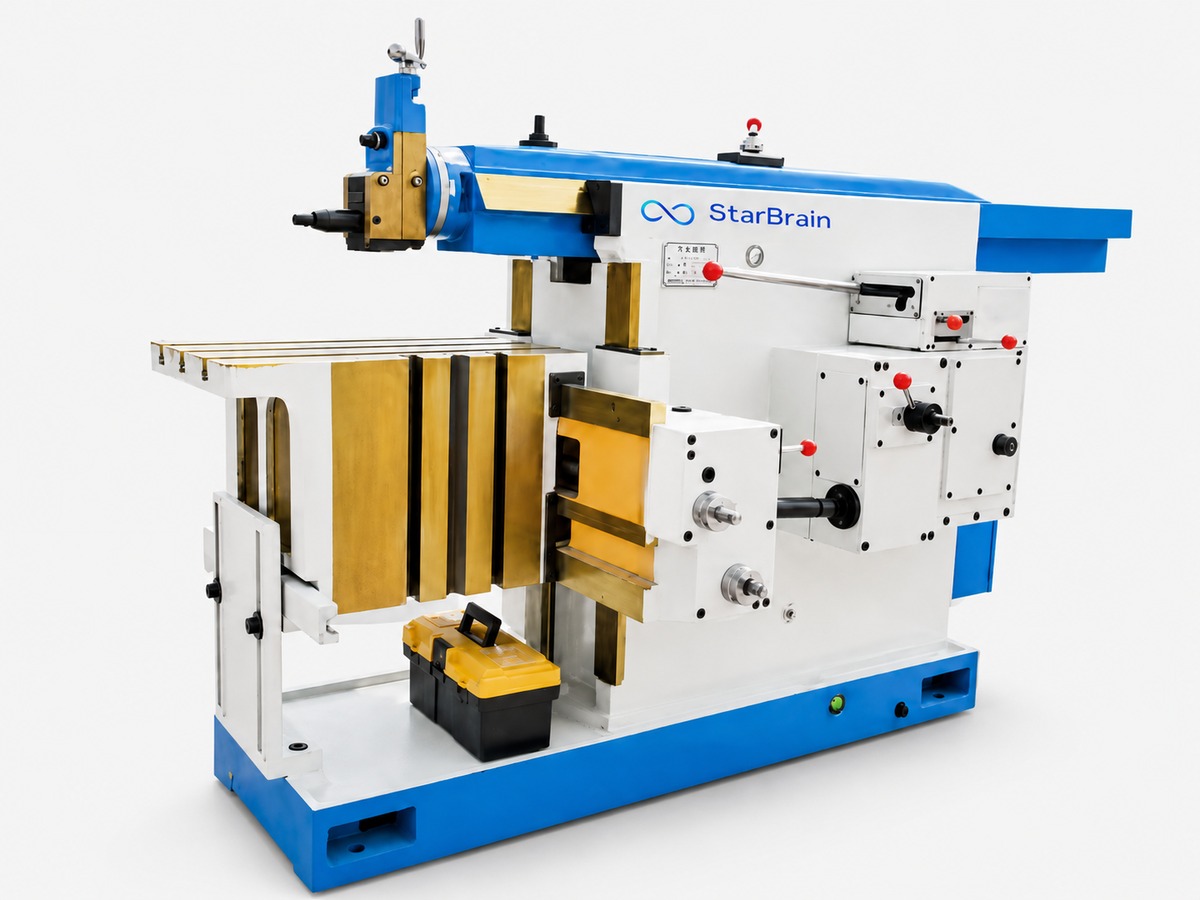

Product Gallery
What's Included
- ✓ Standard tool holder and cutting tools
- ✓ Operation and maintenance manual
Product Category
Machine Tools — suitable for single-piece and small-batch production tasks in machine workshops. A versatile machining solution balancing efficiency and flexibility.
