Programmable Logic Controller (PLC)
Training System
A comprehensive industrial automation training platform built around Siemens SIMATIC S7-1200 with PROFINET, Modbus RTU, HMI, VFD, and Servo systems.
Complete Industrial Automation Training Platform
Designed for engineering universities, polytechnic institutes, vocational training centers, and industrial laboratories. The system integrates Siemens SIMATIC S7-1200 PLC with multiple expansion modules, industrial HMI, VFD, servo drive, and diverse training modules into a complete workstation.
With TIA Portal programming support (LAD, FBD, SCL), PROFINET Industrial Ethernet, and Modbus RTU communication, this platform provides a comprehensive environment for teaching modern industrial automation concepts from basic logic control to advanced motion control and SCADA integration.
Core Advantages
Seven integrated subsystems that deliver a complete, hands-on industrial automation training experience.
Siemens S7-1200 PLC
Modular industrial PLC with 14 digital inputs, 10 digital outputs, 2 analog inputs, PROFINET port, and full expansion capability.
Multiple Expansion Modules
Includes digital I/O (SM1221, SM1222), analog I/O (SM1234, SM1232), and communication interface modules for flexible configuration.
Industrial HMI
7-inch Siemens SIMATIC HMI KTP700 Basic PN touch panel with PROFINET connectivity for operator interface design.
VFD & Servo Drive
SINAMICS V20 Variable Frequency Drive (0.75 kW) and V90 servo drive with SIMOTICS S-1FL6 servo motor for motion control training.
Diverse Training Modules
Pick & Place pneumatic gripper, water pump control, fire indication system, motor starter training, and automation control simulator.
Industrial Communication
Supports PROFINET Industrial Ethernet, Modbus RTU, RS-485 communication, and full TIA Portal programming environment.
Complete Workstation
Heavy-duty steel frame table, branded desktop PC (Intel Core i7, 16GB DDR5), 27-inch monitor, and UPS for uninterrupted training.
11 Hands-On Experiment Modules
From basic logic to advanced SCADA — a complete curriculum covering modern industrial automation.
- PLC Programming (LAD, FBD, SCL)
- Digital & Analog I/O Control
- PROFINET Configuration
- Modbus RTU Communication
- HMI Design & PLC Integration
- VFD Parameterization
- Servo Positioning & Motion
- PID Process Control Simulation
- Pneumatic Pick & Place
- Motor Starter Circuits
- SCADA & Process Visualization
Technical Specifications
All specifications are based on StarBrain factory standard configuration. Actual specifications may vary — refer to the product nameplate.
| Parameter | Value |
|---|---|
| PLC CPU | SIMATIC S7-1200 CPU 1214C DC/DC/DC (6ES7214-1AG40-0XB0) |
| Digital Inputs | 14 × 24VDC |
| Digital Outputs | 10 × 24VDC |
| Analog Inputs | 2 (On-board) + 4 (SM1234) |
| Analog Outputs | 1 (Signal Board) + 2 (SM1234) + 4 (SM1232) |
| Communication | Integrated PROFINET port, RS-485/Modbus RTU |
| HMI | Siemens SIMATIC HMI KTP700 Basic PN, 7-inch TFT, 800×480 |
| VFD | Siemens SINAMICS V20, 0.75 kW (1 HP), 3-Phase, 380-480VAC |
| Servo Drive | Siemens SINAMICS V90, 0.4-0.75 kW |
| Servo Motor | Siemens SIMOTICS S-1FL6, 3000 rpm, 17-bit Absolute Encoder |
| Programming Software | Siemens TIA Portal (LAD, FBD, SCL) |
| Desktop PC | Intel Core i7 (14th Gen), 16GB DDR5, 512GB NVMe + 1TB HDD, Windows 11 Pro |
| Workstation Dimensions | Approx. 1500 × 750 × 1700 mm (L × W × H) |

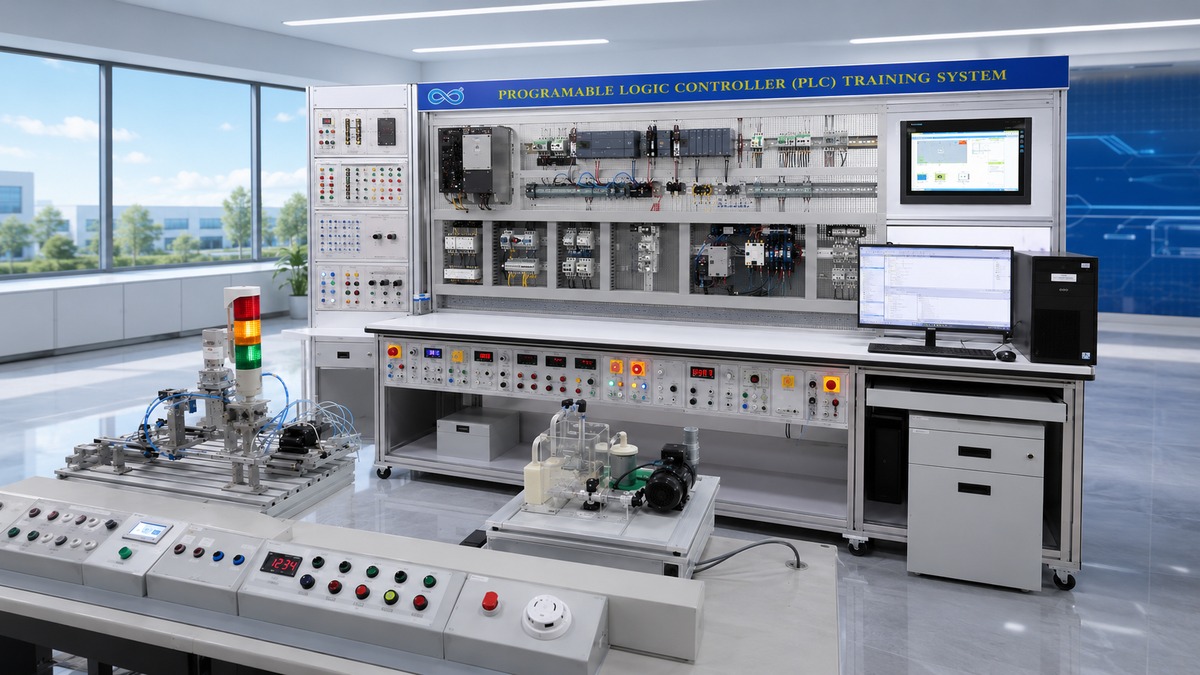

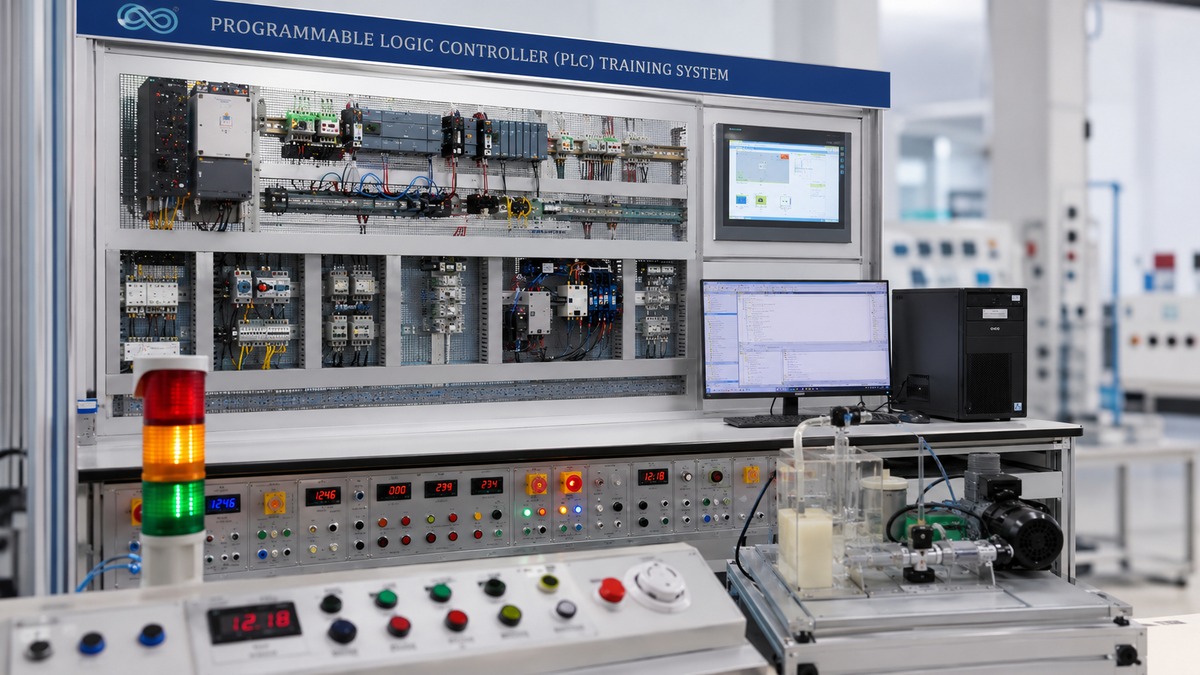

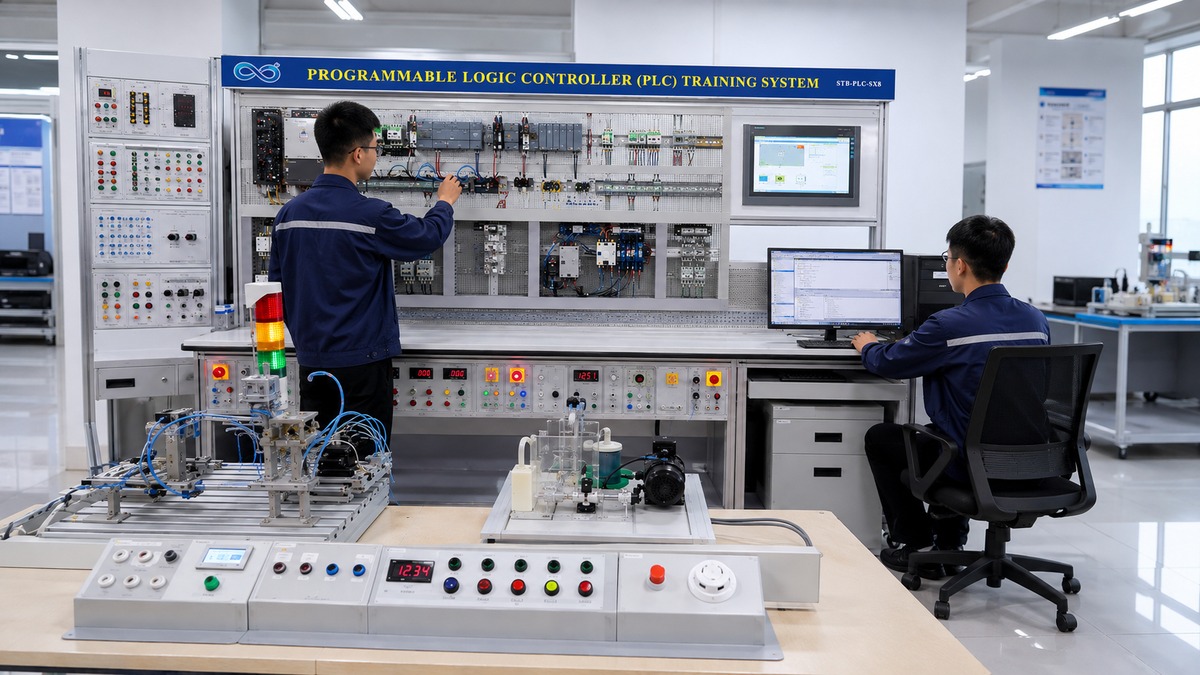

Product Gallery
What's Included
- ✓ Siemens PLC Memory Card
- ✓ Front Connectors and Ethernet Programming Cable
- ✓ DIN Rail Accessories, Terminal Markers, Terminal Blocks
- ✓ Jumper Bars, Ferrules, Cable Ties, Wiring Labels
- ✓ Fuse Set and Small Maintenance Tools
- ✓ User Documentation (Operator Manual, Wiring Diagram, Maintenance Guide)
Product Category
Industrial Automation Training — suitable for engineering universities, vocational training centers, and industrial laboratories. A complete platform for teaching modern PLC, HMI, drive, and communication technologies.
Get a Quote for the PLC Training System
Contact StarBrain for technical specifications, custom configurations, and delivery timeline.
